this bronchogenic carcinoma showed extension of pulmonary

vessels inside it while in round atelectasis ,vessels deviate around

mass

Reference:BiblioMed Textbook-Computed Body Tomography

vessels passed around mass

Reference:BiblioMed Textbook-Computed Body Tomography

Reference:BiblioMed Textbook-Computed Body Tomography

Reference:BiblioMed Textbook-Computed Body Tomography

Reference:BiblioMed Textbook-Computed Body Tomography

Reference:BiblioMed Textbook-Computed Body Tomography

white arrows=dense calcified plaques.

black arrows=calcified mediastinal lymph nodes.

due to TB empyema.

Reference:BiblioMed Textbook-Computed Body Tomography

Reference:BiblioMed Textbook-Computed Body Tomography

Reference:BiblioMed Textbook-Computed Body Tomography

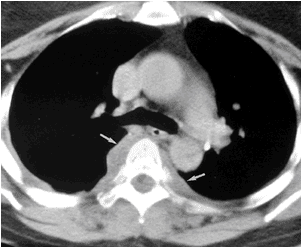

vertebral body 11 with bone destruction

and sclerosis

white arrow=thickened para spinal soft

tissue due inflammation.

Reference:BiblioMed Textbook-Computed Body Tomography

para-spinal pleural based lymphoma.

Reference:BiblioMed Textbook-Computed Body Tomography

pleural versus pulmonary lesion.

look to mild lung infiltrate surrounding

lesion denote that the lesion is of pulmonary

origin and not pleural.

Reference:BiblioMed Textbook-Computed Body Tomography

Reference:BiblioMed Textbook-Computed Body Tomography

pleural nodule related to pleura covering right atrium.

Reference:BiblioMed Textbook-Computed Body Tomography

thin enhancing walls with obtuse angles with chest wall.

Reference:BiblioMed Textbook-Computed Body Tomography

1-spherical in shape.

2-thick irregular wall.

3-acute angle with chest wall.

4-related to a bronchus.

Reference:BiblioMed Textbook-Computed Body Tomography

E=lenticular shape with thin walls and smooth inner surface.

formin an obtuse angle with chest wall,pulmonary vessels are

compressed and displaced around empyema.

A=sherical in shape with thick iregular wall,and form acute

angle with chest wall,pulmonary vessels extend directly toward

abscess.

Reference:BiblioMed Textbook-Computed Body Tomography

lung abscess with acute angle with pleura.

it contains cavity with gas and fluid level.

Reference:BiblioMed Textbook-Computed Body Tomography

arrow=fistula between esophagus and empyema

in the right side(rupture esophagus).

Reference:BiblioMed Textbook-Computed Body Tomography

Em=empyema with thickened and enhanced

pleura.

Ef=no pleural thickening and enhancement

denoting effusion and not empyema.

presence of gas inside empyema suggest

broncho-pleural fistula.
open arrow=edema and inflammation of the

extra pleural tissue.

cephalad veiw showed empyema more rounded

simulating lung abscess.

Reference:BiblioMed Textbook-Computed Body Tomography

arrow head=thickened enhanced parietal pleura

arrow=thickening and inflammation of extra pleural

soft tissue in posterior hemithorax.

lung window setting showed bronchi and vessels

compressed and displaced by empyema.

Reference:BiblioMed Textbook-Computed Body Tomography

L=liver.

E=effusion.

A=ascites.

Reference:BiblioMed Textbook-Computed Body Tomography

E=pleural effusion.

arrow head=atelectatic lung.

A=ascites.

Reference:BiblioMed Textbook-Computed Body Tomography

E=effusion.

short arrow=bare area of liver.

long arrow=right crus.

Reference:BiblioMed Textbook-Computed Body Tomography

- thick black line represent right diaphragm
with its right crus.
-pleural effusion lies posterior and externally
to the diaphragm which may be extend behind
right crus adjacent to vertebra.
-ascites lies anterior and internal but does not
extend medially

Reference:BiblioMed Textbook-Computed Body Tomography

arrow head=bilateral small enhancing characteristic

pulmonary atelectasis.

bilateral small amount pleural effusion.

Reference:BiblioMed Textbook-Computed Body Tomography

H=heterogenous hyperdense pleural fluid causing

arrow=compressive collapse of the left lung.

Reference:BiblioMed Textbook-Computed Body Tomography

H=pleural hematoma.

Reference:BiblioMed Textbook-Computed Body Tomography

PL=loculated pleural effusion.

PC=pericardial effusion.

due to leukaemic infiltration.

Reference:BiblioMed Textbook-Computed Body Tomography

a-extra-pleural lesion=displace both parietal and visceral pleura

resulting in obtuse angle between lesion and chest wall.

+ or - rib erosion.

b-pleural lesion=arise between two layers of pleura producing obtuse

angle with chest wall or become pedunculated and protruded into peripheral

lung parenchyma producing acute angle with chest wall.

c-pulmonary lesion.
sub pleural pulmonary lesion cause acute angle with chest wall.

Reference:BiblioMed Textbook-Computed Body Tomography

arrow=inferior pulmonary ligament.

arrow head=thickening and enhancement

due to pleura due to radiation.

Reference:BiblioMed Textbook-Computed Body Tomography

Reference:BiblioMed Textbook-Computed Body Tomography

Reference:BiblioMed Textbook-Computed Body Tomography

CT section 2mm in thickness.

arrow head=lesser fissure(pausity of vascular markings).

arrow=greater fissure.
